| Dimensions (L x W x H) | mm | 830 x 600 x 820 |
|---|---|---|
| Net weight | kg | 74.00 |
| Guarantee (+ request guarantee) | Years | 2 + 1 |

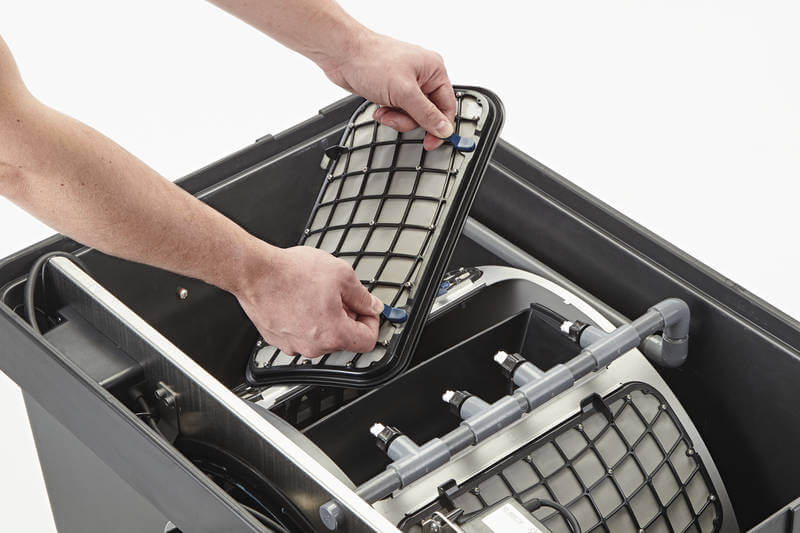

| Number of sieve elements | Unit | 8 |
| Material | GRP Duroplast/stainless steel | |
| Number of inlets | Unit | 2 |
| Connection inlet | mm | 50 |
| Number of outlets | Unit | 2 |
| Connections, outlet | DN 150 | |
| Connections, sludge discharge | DN 75, DN 110 | |
| Litres per hour, min. | l/h | 10000 |
| Max. flow rate | l/h | 25000 |
| Connection to | Bitron C 72 - 110 W, Bitron Eco 120 - 240 W | |
| Installation height above water level | cm | 40.0 |
| Type of use | Pump fed system | |
| Other | Pollutant discharge incl. slide valve | |
| Item number | 47003 | |
| EAN | 4010052470030 |
